Product Details:
|
| Name: | Rubber Suction Hose | Connection: | Steel Flange |
|---|---|---|---|
| Material: | NBR With Coil Cloth Reinforced And Steel Wire Reinforced | Length: | Customer Made |
| Highlight: | rubber suction hose pipe,2 inch rubber suction hose,3 inch heavy duty suction hose |
||
Discharge and Suction Dredging Hose/Discharge Rubber Hose
Discharge and Suction Dredging Hose/Discharge Rubber Hose
Shandong Jiubei New Materials Co.,Ltd are engaged in offering clients with superior quality discharge rubber hoses which has perfect wear resistance, tensile strength, bending capacity and pressure rating. The discharge rubber hose is fixed with flanges at both ends and the usual length is from 1.2m to 3.0m.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

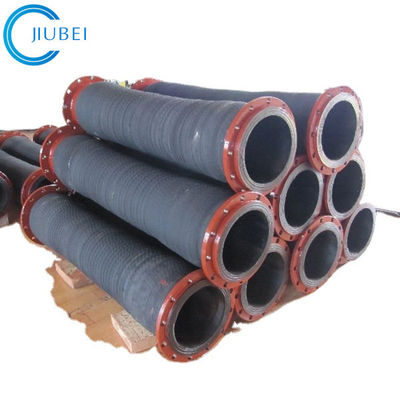

Detail images of 10inch sand/slurry dredging Rubber Suction Hose:
