Product Details:
|
Name: | 14Inch Plastic HDPE Dredging Pipe | Material: | PE 100 |
---|---|---|---|
Connection: | Galvanised Bolts Nuts And Washers | Accessories: | HDPE STUB END AND STEEL BACK RING |
LENGTH: | CUSTOMIZED | MOQ: | 100m |
Highlight: | HDPE floating dredge pipe,dredge pipe for sale,floating dredge pipe 14Inch |

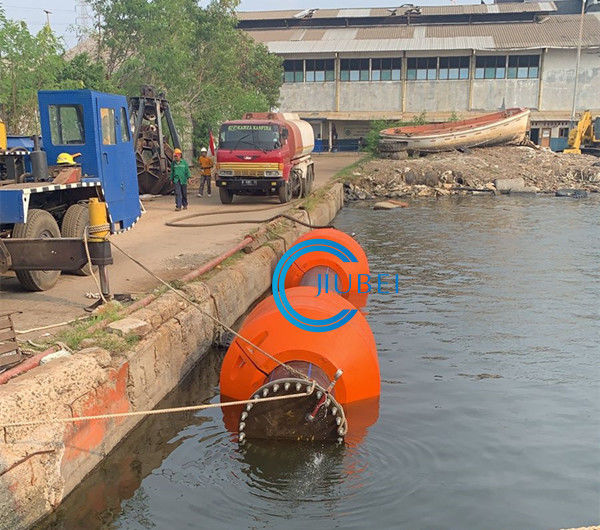

14Inch plastic HDPE dredging pipe
The flanged HDPE dredging pipe is easy to be connected, which reduced the swings caused by the waves and makes the medium smoother in the pipe.
The HDPE dredging pipes are used for drainage, water-logging, dredging and sand discharging of port.
Benefits of 14Inch plastic HDPE dredging pipe:
a. High Corrosion Resistance
HDPE material structure is saturated molecular group, with great chemical stability,good resistance of various corrosion mediums(acid,alkali,salt)and organic solvents.
b. High Impact Resistance
c. High Pressure Resistance
d. Environment Proctection
The manufacturing and processing of wear resistant HDPE pipe is low carbon,without wasted water,exhausted gas and waste residue,which saves 20% energy compare with the traditional steel pipes.
e. High Flexibility
f. Non-scaling
g. Low energy consumption
Dimension of HDPE dredging pipe:
Outside Diameter(mm) |
Wall thickness(mm) | ||||
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
0.4Mpa | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | |
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 |
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 |
710 | 27.2 | 33.9 | 42.1 | 52.2 | |
800 | 30.6 | 38.1 | 47.4 | 58.9 | |
900 | 34.4 | 42.9 | 53.3 | 66.2 | |
1000 | 39.2 | 47.7 | 59.3 | 73.6 | |
1200 | 45.9 | 57.2 | 70.6 | ||
1400 | 53.9 | 66.7 | 82.4 | ||
1600 | 61.6 | 76.2 | 94.2 |
Technical specifications:
Standard: ISO4427, EN12201, AS/NZS4130, DIN8074, ASTMF714, GOST18599, GB/T13663
No. | Item | Requirements | |
1 | Elongation at break% | ≥350 | |
2 | Longitudinal reversion(100℃), % | ≤3 | |
3 | Oxidation induction time(200℃)min | ≥20 | |
4 | Weather resistance after the pipe has accepted the aging energy which equal to or more than 3.5GJ/㎡≤ | 80℃ static hydraulic strength(165h) | Non breakage and leakage |
Percentage of breaking-elongation,% | ≥350 | ||
Oxidation induction time(200℃)min | ≥10 |
