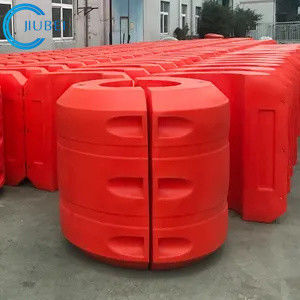

Hose Dredge Floater For Pipe Marine At Sea Machine Hose Flotation Device
  • name
  • name
  • name

Hose Dredge Floater For Pipe Marine At Sea Machine Hose Flotation Device

MOQ: 10 pairs
Price: USD50~500/pair
Standard Packaging: STANDARD SEA WORTHY PACKAGE
Delivery Period: 10days
Supply Capacity: 300pairs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Model Number
DN400 PE pipe float
Name:
Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging
Material:
Out Shell PE, Inner Foam: PU
Color:
Orange /Yellow
Dimension:
DN60-1200mm
Connection:
Galvanised Bolts Nuts And Washers
Shape:
Clinder
Highlight:

dredge hose floats

,

floating dredge pipe

,

floating dredges

Product Description

Floats Marine Dredging Pipeline Floater For Dredging Project


Product performance characteristics:

1. Good toughness and excellent impact resistance, especially suitable for offshore construction.

2. Light weight, easy to install and carry, and low transportation and transfer cost.

3. Wear resistance and long service life.

4. The price is low, and the performance-price ratio is significantly better than the steel buoy.



Note:

1. Two sections of the floating body are one group (one section consists of two pieces), which can float up to 6 meters of mud pipe and 1.5 meters of rubber hose;

2. Floating bodies of various specifications with an outer diameter of 4 meters and a length of less than 4 meters can be produced.



Polyethylene Hull Mechanical Strength

No. Item Performance
1 Tensile Strength Mpa≥ 12
2 Elongation at break %≥ 10
3 Impact Strength KJ/㎡ 31
4 Bending Strength Mpa≥ 15.7
5

Weather Resistance

(total 3.5GJ/㎡ aging capacity)

Elongation at break

%≥

 10
6 OIT 200℃ mm≥ 10



Item Out shell data Item Inner Foam
Tensile Strength ≥13.1MPa Absorption 1-2g/100cm2
Elongation at break ≥11.1% Breaking Strength 0.08-0.1MPa
Impact strength ≥32.1KJ/m2 Elongation at break 4-6%
Bending Strength ≥15.7MPa Compressive strength 0.1-0.24MPa














Hose Dredge Floater For Pipe Marine At Sea Machine Hose Flotation Device 0

Hose Dredge Floater For Pipe Marine At Sea Machine Hose Flotation Device 1
Hose Dredge Floater For Pipe Marine At Sea Machine Hose Flotation Device 2
