Mud Sand Dredging HDPE Pipe Floater Floating Sea Flange Connections 12inch SDR21

Products

Mud Sand Dredging HDPE Pipe Floater Floating Sea Flange Connections 12inch SDR21

MOQ:	100m
Price:	usd5/m
Standard Packaging:	Standard sea worthy packaging
Delivery Period:	7working days
Supply Capacity:	3000m/month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JiuBei

Certification

ISO

Name:

HDPE Pipe

Material:

PE100 HDPE

Color:

Black Or Customer Made

Length:

As Request

Connection:

Welding Or Steel Flange

Application:

Dredging

Highlight:

Mud Sand Dredging HDPE Pipe

Dredging HDPE Pipe 12inch

sdr 21 hdpe pipe

Product Description

HDPE dredging pipe introduction

1. HDPE dredger pipe is made of high density polyethylene resin. It has high rigidity and strength with low strength but high mechanical strength.
2. Corrosion resistance: high resistance to various types of chemicals.No electrochemical corrosion.
3. Wear resistance: It has very high wear resistance, the abrasion rate is 4-8 times that of steel pipe, the life expectancy can reach more than five years.
4. Light weight: 1/8 the weight of steel pipe, it is lightweight, easy to install and carry to construction sites, saving construction time.
HDPE pipe application > Urban work system in the aqueducts; > extinguishing water delivery hose; > mine drainage; > industrial material transfer hose; > water supply network in landscape architecture; > vacuum, pressure and gravity sewage systems; > slag, sewers; > agricultural irrigation pipe; > compressed air services; > Electrical and telecommunications cable ducts.
The unique properties of PE pipe make it ideal for use where trenchless technology is being used to install or retrofit piping systems. Trenchless technology is a common technique used to eliminate the need for open trenches and the reduce nuisance to the public and the environment.

Dimension:

Outside Diameter(mm)	Wall thickness(mm)
	SDR26	SDR21	SDR17	SDR13.6	SDR11
	0.4Mpa	0.6Mpa	0.8Mpa	1.0Mpa	1.25Mpa
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.7	33.1	40.9
500	19.1	23.9	29.7	36.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30.0	37.4	46.3	57.2
710	27.2	33.9	42.1	52.2
800	30.6	38.1	47.4	58.9
900	34.4	42.9	53.3	66.2
1000	39.2	47.7	59.3	73.6
1200	45.9	57.2	70.6
1400	53.9	66.7	82.4
1600	61.6	76.2	94.2

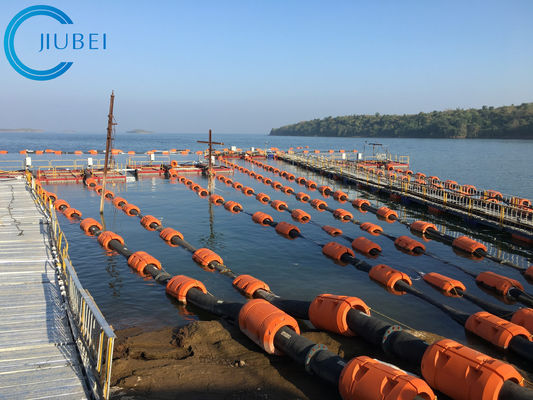

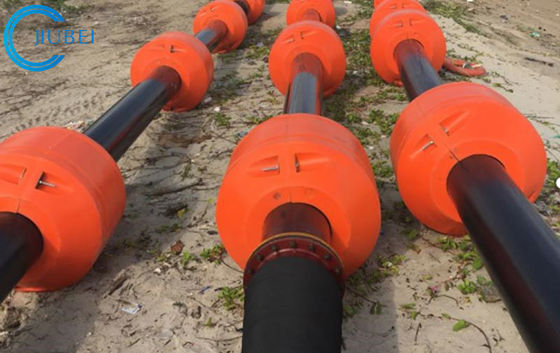

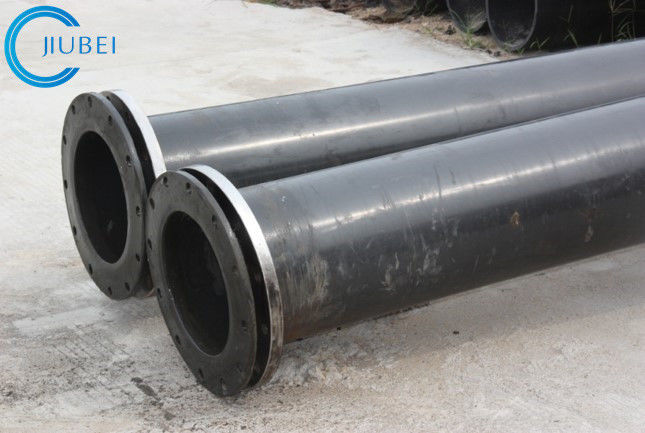

Detail images:
Mud Sand Dredging HDPE Pipe Floater Floating Sea Flange Connections 12inch SDR21 0
