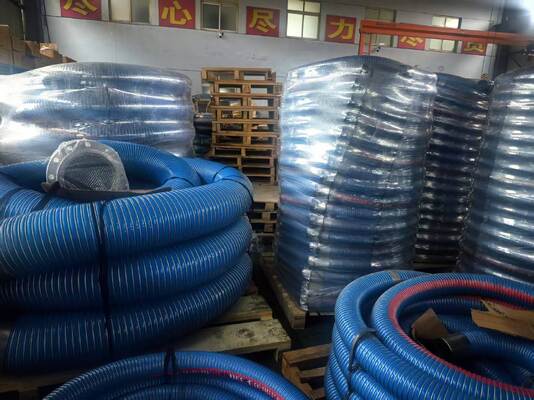

Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer

Products

Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer

MOQ:	1
Price:	10
Standard Packaging:	Wood pallet
Delivery Period:	5-8days
Payment Method:	T/T
Supply Capacity:	3000m

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Jiubei

Model Number

1-10inch

Color:

Customized

Material:

Composite Material

Length:

Customized

Connection:

Flanges, Camlock And So On

Highlight:

Industrial Fluid Transfer Flexible Hose

Chemical Transfer Flexible Hose

Flexible Hose for Oil Transfer

Product Description

Multipurpose Composite Flexible Hose for Chemical Oil Industrial Fluid Transfer

Our Multipurpose Composite Flexible Hose is designed for safe and efficient transfer of a wide range of liquids, including chemicals, petroleum products, solvents, acids, and industrial fluids.
It is widely used in chemical plants, oil & gas terminals, tank trucks, marine operations, and industrial loading & unloading systems.

This composite hose is constructed with multiple layers of thermoplastic films, reinforced fabric plies, and an external wear-resistant helix, providing excellent flexibility, high strength, and long service life even under harsh working conditions.

Key Features

Suitable for multiple chemicals and industrial fluids
Excellent flexibility and bend radius, easy installation
Lightweight design, easier handling than rubber hoses
High resistance to corrosion, abrasion, and aging
Anti-static option available for hazardous media
Customizable inner liner, diameter, length, and end fittings

Typical Applications:

Chemical and petrochemical transfer
Oil, fuel, and lubricant loading & unloading
Tank truck, railcar, and ship transfer systems
Industrial fluid handling and process pipelines

Applications

Composite hoses provide essential flexible connections to compensate for vibration, movement, or misalignment in fluid transfer systems. Ideal for delivery and suction of fuels, oils, and lubricants on tank trucks, railcars, or fixed deposits.

All hoses can be manufactured according to customer working conditions, including temperature range, pressure requirements, and transferred media.
OEM and custom solutions are available.

Technical Parameters

I.D (MM/IN)	Max. WP. (psi/Mpa)	Blasting Pressure (psi/Mpa)	Reference Weight (kg/m)	Bending Radius (mm)
25/1	150/1.03	600/4.2	0.9	100
38/1.5	150/1.03	600/4.2	1.5	110
51/2	150/1.03	600/4.2	1.8	125
65/2.5	150/1.03	600/4.2	2.5	150
76/3	150/1.03	600/4.2	2.3	200
100/4	150/1.03	600/4.2	9.9	500
150/6	150/1.03	880/6.06	1.2	100
25/1	220/1.516	880/6.06	2.0	120
38/1.5	220/1.516	880/6.06	2.2	180
51/2	220/1.516	880/6.06	2.5	260
65/2.5	220/1.516	880/6.06	3.0	260
76/3	220/1.516	880/6.06	5.0	400
100/4	220/1.516	880/6.06	14	600
152/6	220/1.516	880/6.06	22	800
202/8	220/1.516	880/6.06	27	1100
252/10	220/1.516	880/6.06
