High Performance Composite Hose For Safe Efficient Fluid Transfer

Products

High Performance Composite Hose For Safe Efficient Fluid Transfer

MOQ:	1
Price:	10
Standard Packaging:	Wood pallet
Delivery Period:	5-8days
Payment Method:	T/T
Supply Capacity:	3000m

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Jiubei

Model Number

1-10inch

Color:

Customized

Material:

Composite Material

Length:

Customized

Connection:

Flanges, Camlock And So On

Highlight:

Efficient Fluid Transfer Composite Hose

Safe Fluid Transfer Composite Hose

High-Performance Composite Hose

Product Description

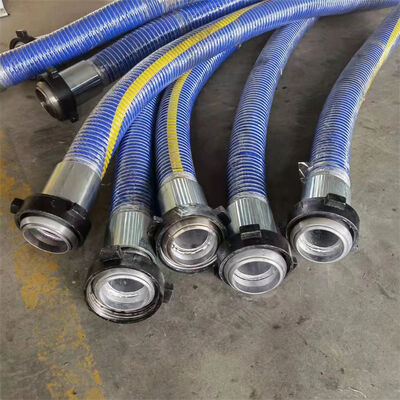

High-Performance Composite Hose for Safe and Efficient Fluid Transfer

The Multipurpose Composite Flexible Hose is a lightweight, highly flexible, and corrosion-resistant hose designed for the safe transfer of a wide range of liquids and chemicals.
It is manufactured using multiple layers of thermoplastic films and high-tensile reinforcement, providing excellent chemical compatibility, pressure resistance, and long service life.

Our composite hoses are manufactured under strict quality control and can be customized to meet specific working conditions, standards, and customer requirements.

Main Functions

Safely transfer chemicals, petroleum products, solvents, and industrial liquids
Reduce the risk of leakage, corrosion, and hose failure
Provide reliable performance under vacuum and pressure conditions
Improve operational efficiency through lightweight and flexible handling

Key Features & Advantages

Wide Chemical Compatibility
Suitable for acids, alkalis, hydrocarbons, fuels, oils, solvents, and more.

Lightweight & Flexible Design
Easier to install, transport, and operate compared to rubber hoses.

Excellent Corrosion Resistance
Non-metallic inner layers prevent chemical attack and internal corrosion.

High Safety Performance
Anti-static options available to reduce static electricity risks.

Customizable Construction
Diameter, length, working pressure, temperature range, and end fittings can be customized.

Long Service Life
Designed for repeated use in industrial and marine environments.

Typical Applications

Chemical Industry
Transfer of corrosive and non-corrosive chemicals.

Oil & Gas Industry
Loading and unloading of fuel oil, diesel, gasoline, and lubricants.

Marine & Port Operations
Ship-to-ship and ship-to-shore liquid transfer.

Tank Trucks & Railcars
Safe loading and unloading of liquid cargo.

Industrial Plants
Fluid transfer systems in factories and processing facilities.

Technical Parameters

I.D (MM/IN)	Max. WP. (psi/Mpa)	Blasting Pressure (psi/Mpa)	Reference Weight (kg/m)	Bending Radius (mm)
25/1	150/1.03	600/4.2	0.9	100
38/1.5	150/1.03	600/4.2	1.5	110
51/2	150/1.03	600/4.2	1.8	125
65/2.5	150/1.03	600/4.2	2.5	150
76/3	150/1.03	600/4.2	2.3	200
100/4	150/1.03	600/4.2	9.9	500
150/6	150/1.03	880/6.06	1.2	100
25/1	220/1.516	880/6.06	2.0	120
38/1.5	220/1.516	880/6.06	2.2	180
51/2	220/1.516	880/6.06	2.5	260
65/2.5	220/1.516	880/6.06	3.0	260
76/3	220/1.516	880/6.06	5.0	400
100/4	220/1.516	880/6.06	14	600
152/6	220/1.516	880/6.06	22	800
202/8	220/1.516	880/6.06	27	1100
252/10	220/1.516	880/6.06
