Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm
  • name
  • name

Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm

MOQ: 100m
Price: usd50-500/m
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Payment Method: L/C, T/T
Supply Capacity: 10000m/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Jiubei
Certification
ISO
Model Number
DN100~700
Name:
Flanged Dredging HDPE Pipe With Stub End For River Dredging Fine Sand
Material:
PE 100
Connection:
Galvanised Bolts Nuts And Washers
Accessories:
HDPE STUB END AND STEEL BACK RING
LENGTH:
CUSTOMIZED
MOQ:
100m
Highlight:

Flanged Dredging HDPE Pipe

,

Dredging HDPE Pipe 500mm

,

hdpe dredge pipe 500mm

Product Description

Flanged dredging HDPE pipe with stub end for river dredging fine sand introduction

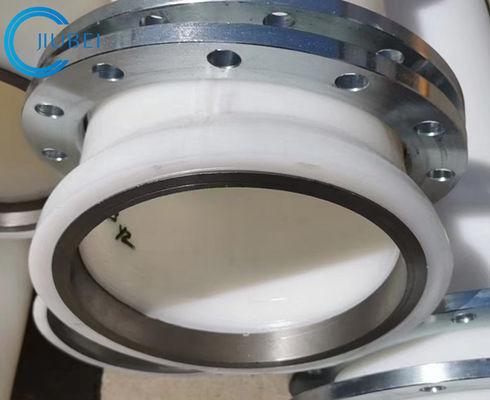

As dredging becomes more & Most popular today, HDPE pipes used to be the ideal option for transporting pressurized liquids containing a mixture of water and inerts such as clay, silt, sand, gravel and bulky solids. HDPE dredge pipes are made of high-density polyethylene and can be manufactured in a variety of sizes. The dredger pipes are manufactured and welded with two HDPE flange adapters and two steel flanges, also called "HDPE flanged pipes",
, the two pipes of which can be easily connected together by flanges and covered with floats to float over sea dredged pipes, which is preferred for agricultural applications, mud dredging, mining projects. HDPE dredge pipes are used with polyurethane (foam) filled floats.Some models are to be used with rubber hoses for river or sea dredging.



Dimension of HDPE dredging pipe:



Outside Diameter(mm)

 Wall thickness(mm)
SDR26 SDR21 SDR17 SDR13.6 SDR11
0.4Mpa 0.6Mpa 0.8Mpa 1.0Mpa 1.25Mpa
110 4.2 5.3 6.6 8.1 10.0
125 4.8 6.0 7.4 9.2 11.4
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15.0 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30.0 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.9
900 34.4 42.9 53.3 66.2
1000 39.2 47.7 59.3 73.6
1200 45.9 57.2 70.6
1400 53.9 66.7 82.4
1600 61.6 76.2 94.2



Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm 0Flanged Dredging HDPE Pipe With Stub End River Dredging Fine Sand 500mm 1
