Product Details:
|
| Name: | Rubber Discharge Hose | Material: | NBR With Coil Cloth Reinforced |
|---|---|---|---|
| Length: | 1m~10m | Connection: | Steel Flange |
| Working Pressure: | 1~2.5Mpa | Bursting Pressure: | 3~7.5Mpa |
| Highlight: | cement discharge hose rubber,10 inch rubber hose,9 inch rubber hose |
||

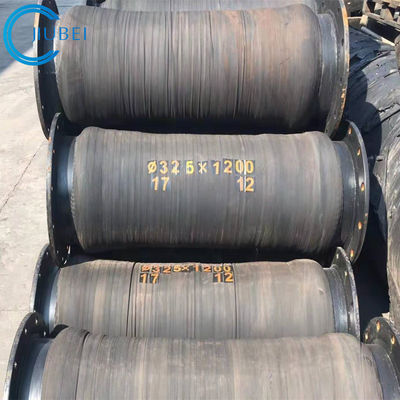

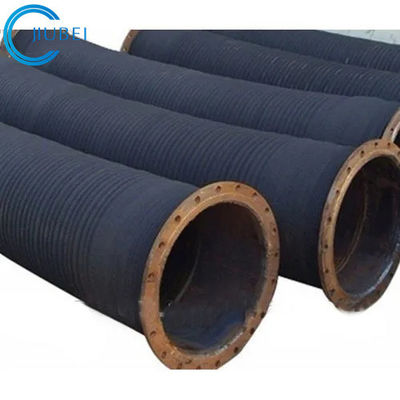

High Pressure Flexible Water Rubber Discharge Industrial Hose
applications
1. Used for mud piping from badge.
2. Widely used for suction or discharge of mud, water, oil, air and driven in industry, agriculture, factory, mining and building etc.
materials
Tube: Smooth NR/synthetic rubber, usually color is black
Reinforcement: one or more layers of spiral fabric reinforcement, steel wire spiral layer,
Cover: Oil, abrasion and weather resistant wrapped synthetic rubber.
structure
1. The inner rubber liner is made of wear-resistant natural rubber and synthetic rubber
2. The reinforcement layer is made of high-strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is made of natural rubber and synthetic rubber.
4. The surface of the hose takes the form of corrugated
Construction:
| Inner layer | Black,wear and corrosion resistant rubber |
| Reinforcement | High tensile spiral fabric reinforcements, steel wire spiral layer |
| Cover | Black,wear and corrosion resistant rubber |
Inner layer: NR,BR and SBR compound
synthetic rubber;
Reinforcement: high tensile strength fabrics
with helix steel wire；
Cover:NR+CR；
Ideal working temperature: -20 to 70℃；
Safety factor: 5:1
Dimension:
| I.D | W.P. | B.P. | Length | Reference Thickness | |
| mm | Tolerance(mm) | bar | bar | m | mm |
| 300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
| 800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
| 900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
| 1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
| 1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
| Customer made acceptable. | |||||
