Product Details:
|
| Name: | Rubber Discharge Hose | Material: | NBR With Coil Cloth Reinforced |
|---|---|---|---|
| Length: | 1m~10m | Connection: | Steel Flange |
| Working Pressure: | 1~2.5Mpa | Bursting Pressure: | 3~7.5Mpa |
| Highlight: | 6 inch diameter rubber hose,6 inch flexible rubber hose,flexible rubber hose pipe |
||

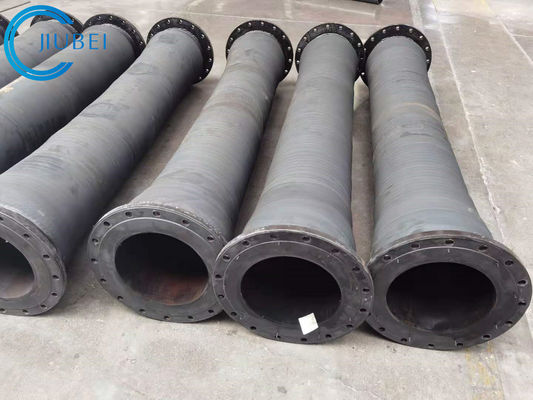

Industrial Hydraulic Rubber Suction Discharge Flexible Hose
PRODUCT DETAILS
The river and coast subsidence is not a new phenomenon in Vietnam, and serves to carry the dredging of seaports
Out levees and coastal embankments, 75 Rubber A member Company Limited has produced and distributed the slurry rubber hose.
1. Characteristics of hose
* Length of hose: 2-12 meters
* Metal joints
* Specialized in dredging waterways
* Compatible with all types of industrial pumps
* High durability, impact resistance, water pressure, limited distortion
* Suitable for high and low terrain, corner and zigzag.
2. Classification and structure of rubber hose
Hose products include delivery and suction hose used for dredging waterway.
Structure of drain hose:
* The rubber lining is made of high abrasion resistant rubber;
* The lamination polyamite coating with perfect durability adheres firmly to the spring layer to help the hose withstand the
work pressure, impact;
* Cover rubber layer is made of materials resistant to salt-water and impact-resistant work environments.
suction hose:
* The rubber lining is made of high abrasion resistant rubber;
* The lamination polyamite coating and steel ring adheres firmly to help the hose withstand the working pressure, deformation
* Cover rubber layer is made of materials resistant to salt-water and impact-resistant work environments.
Construction:
| Inner layer | Black,wear and corrosion resistant rubber |
| Reinforcement | High tensile spiral fabric reinforcements, steel wire spiral layer |
| Cover | Black,wear and corrosion resistant rubber |
Inner layer: NR,BR and SBR compound
synthetic rubber;
Reinforcement: high tensile strength fabrics
with helix steel wire；
Cover:NR+CR；
Ideal working temperature: -20 to 70℃；
Safety factor: 5:1
Dimension:
| I.D | W.P. | B.P. | Length | Reference Thickness | |
| mm | Tolerance(mm) | bar | bar | m | mm |
| 300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
| 800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
| 900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
| 1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
| 1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
| Customer made acceptable. | |||||
