Product Details:
|
Name: | Sand/slurry Dredging Ceramic Lining Rubber Discharge Hose | Material: | NBR With Coil Cloth And Ceramic Reinforced |
---|---|---|---|
Length: | 1m~10m | Connection: | Steel Flange |
Working Pressure: | 1~2.5Mpa | Bursting Pressure: | 3~7.5Mpa |
Highlight: | flexible sump discharge hose,discharge hose sump pump,flexible sump pump discharge hose |

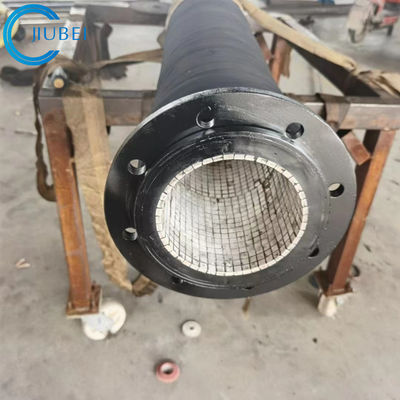

Sand/slurry dredging ceramic lining rubber discharge hose
Ceramic lining dredging rubber discharge hoses are most commonly used discharge rubber hoses in dredging project. The suitable conveyance matters of discharge hoses are usually mud, clay, fine sand, fine-mid sand, and so on.
Inner layer: NR,BR and SBR compound
synthetic rubber
Reinforcement: high tensile strength fabrics and ceramic
with helix steel wire;
Cover:NR+CR;
Ideal working temperature: -20 to 70℃;
Safety factor: 5:1
Dimension:
I.D | W.P. | B.P. | Length | Reference Thickness | |
mm | Tolerance(mm) | bar | bar | m | mm |
300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
Customer made acceptable. |
