Float Collar Buoyancy For Marine

Float Collar Buoyancy For Marine
Float Collar Buoyancy For Marine Float Collar Buoyancy For Marine Float Collar Buoyancy For Marine

Large Image :  Float Collar Buoyancy For Marine

Product Details:
Place of Origin: China
Brand Name: JiuBei
Certification: ISO
Model Number: DN400 PE pipe float
Payment & Shipping Terms:
Minimum Order Quantity: 10 pairs
Price: USD50~500/pair
Packaging Details: STANDARD SEA WORTHY PACKAGE
Delivery Time: 10days
Supply Ability: 300pairs/month

Float Collar Buoyancy For Marine

Description
Name: Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging Material: Out Shell PE, Inner Foam: PU
Color: Orange /Yellow Dimension: DN60-1200mm
Connection: Galvanised Bolts Nuts And Washers Shape: Clinder
High Light:

float collar buoy

,

float buoyancy

,

floating buoy for marine

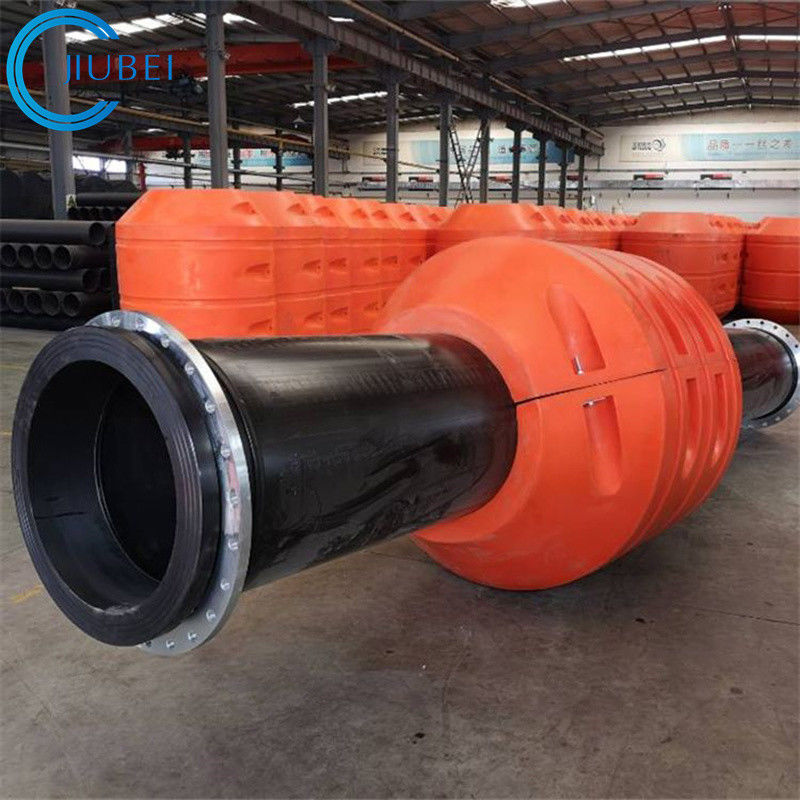

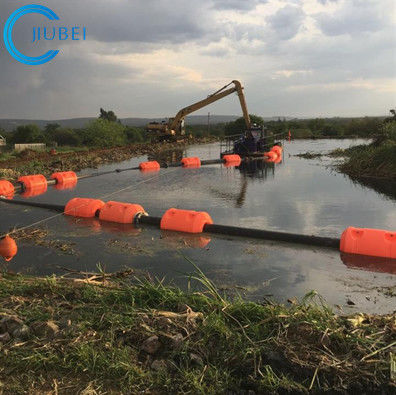

Floats Marine Dredging Pipeline Floater For Dredging Project


Polyethylene Foam Float is a popular floating material for excavator piping at home and abroad. It has the advantages of small size, light weight, high buoyancy, wind and wave resistance, aging resistance, and long service life.

1. The structure and physical and mechanical properties of the Polyethylene Foam Floats:

The shell of the buoy is rotationally molded from linear medium-density polyethylene plastic and filled with high-density polyurethane foam.

The earliest actual use life in China has reached 8 years and it is still in use. It varies depending on the work situation.

The surface of the floating body is smooth and wear-resistant. It can be dragged on the beach sand without damage. The product is impact-resistant, falling from a height of 4.5 m without breaking.

2.Installing the Polyethylene Foam Floats:

The installation of the floating body should use the bolts, nuts and washers provided by the manufacturers. The installation should be tight and suitable, and the plastic should not be deformed. The installation should be equipped with double nuts. When installing, avoid sharp objects piercing the floating body.



PE Float Dimension:

Float I.D.
(mm)
Float O.D.(mm) Float
Length(mm)
Thickness
of Hull(mm)
Floater
Buoyancy (kg)
110 500 500 7 98
125 500 800 7 150
160 500 800 7 145
220 600 700 7 180
250 600 700 7 175
280 700 900 7 340
310 900 1000 8 550
320 1000 1000 9 650
350 950 1000 9 600
390 1000 1000 9 600
400 1100 1100 9 900
450 1200 1200 11 1100
460 1300 1300 12 1400
495 1300 1300 12 1400
520 1300 1450 12 1500
550 1300 1500 12 1750
560 1400 1500 12 1900
600 1400 1600 13 2100
620 1450 1700 13 2400
670 1500 1860 14 2800
720 1500 1860 14 2800
735 1500 1800 14 2700
760 1800 2050 15 3100
800 1800 2160 15 3300
890 2000 2400 15 4600
940 2040 2500 16 4900
1040 2400 2600 16 7000
1140 2300 2550 16 7000
(Support customization)


Float Collar Buoyancy For Marine 0

Float Collar Buoyancy For Marine 1
Float Collar Buoyancy For Marine 2
