Product Details:
|
| Features: | Self Floating, Abrasion Resistant | Name: | 11.8m Length High Flexibility Heavy Duty Sand/slurry Self Floating Dredging Hose |
|---|---|---|---|
| Length: | 50ft, 100ft, 150ft, 200ft | Inner Diameter: | 700mm |
| Material: | Synthetic Rubber | Connection: | Steel Flange |
| Benefits: | Easy Installation, Heavy Duty | Application: | Suction And Discharge Of Abrasive Materials |
| Brand: | Hose Pro Technology Co., Ltd | Burst Pressure: | 450 PSI |
| Color: | Black | Cover: | Synthetic Rubber |
| Product Name: | Self Floating Dredge Hose | Reinforcement: | High Tensile Synthetic Textile |
| Size Range: | 2” To 24” | Temperature Range: | -40°F To +158°F |
| Vacuum: | Full | Working Pressure: | 150 PSI |
| Highlight: | Slurry Self Floating Dredging Hose,Heavy Duty Self Floating Dredge Hose,Synthetic Rubber Dredge Hose |
||

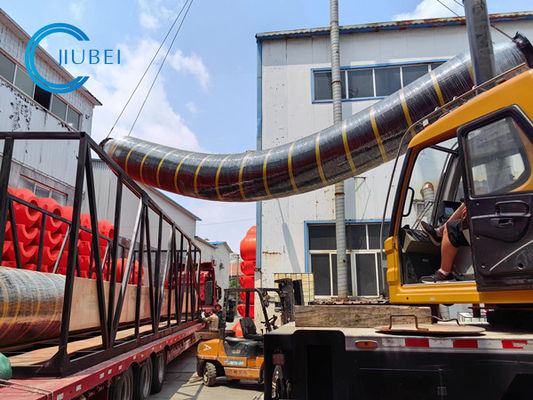

Name: 11.8m length High flexibility heavy duty sand/slurry self floating dredging hose
Marine floating dredging hose product performance: It has wind and wave resistance, corrosion resistance, and good self floating performance. It can withstand high working pressure, has a long service life, and is easy to assemble. Product characteristics: Especially suitable for construction in high wind and wave working areas. The inner diameter of the mud conveying steel pipe ID: 650-1000, and the outer diameter of the self floating hose OO: 1260-1800
Performance:
1, Outer cover with excellent abrasion resistance and UV protection.
2, Wearing colored indicator layer.
3, Single foam floatation casing, preventing water absorption. The hose emergence above water is not less than 20%of the total volume.
4, High quality, wear resistant rubber .
5, Flange design according to customers’ request.
6, Bending angle: In working condition, the bending angle is from 0° to 45°.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
