Product Details:
|
| Name: | Self Floating Rubber Hose | Material: | NBR With High Density HDPE Foam |
|---|---|---|---|
| Connection: | Steel Flange | Length: | 11.8m/unit |
| Diameter: | DN300~1150mm | Application: | Dredging |
| High Light: | Heavy duty Dredge Hose,Self Floating Dredge Hose 32Inch,Floating Hoses and Equipment |
||

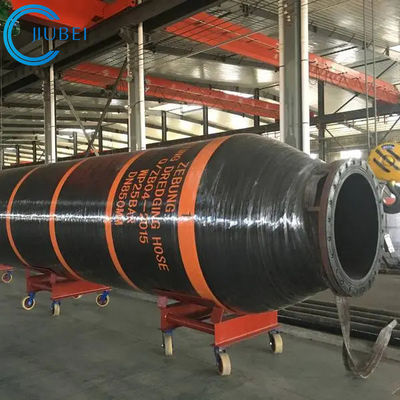

Floating Industrial Wear Rubber Dredge Pipe Flexible Marine Dredge Hose
Flange rubber hose is consist of two flange and one rubber hose, the rubber hose is consist of inner rubber layer, corduroy fabric layer, middle rubber layer, steel wire reinforcement layer, middle rubber layer, corduroy fabric layer, outer rubber layer.
It is mainly used for pump irrigation rive water, sand mud dredger, water sunction etc.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
