Product Details:
|
| Name: | Rubber Discharge Hose | Material: | NBR With Coil Cloth Reinforced |
|---|---|---|---|
| Length: | 1m~10m | Connection: | Steel Flange |
| Working Pressure: | 1~2.5Mpa | Bursting Pressure: | 3~7.5Mpa |
| Highlight: | Oil Suction And Discharge Hose 800mm,oil suction and discharge hose,chemical suction and discharge hose |
||

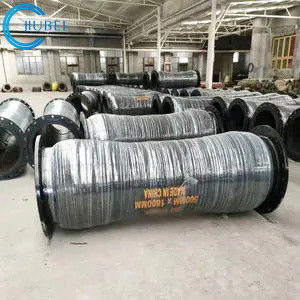

Dredging Industrial Hydraulic Rubber Suction and Discharge Hose
Discharge rubber hose is part of dredge pipeline for dredger, usually with the steel pipe or HDPE pipe connected in one set of pipeline. We know that the general steel pipe and HDPE pipe do not have much flexibility, while the discharge rubber hose has such characteristics. In the working environment with high wind and waves, the discharge rubber hose can rely on its own softness to offset part of the wind, so as to ensure the safety of the whole pipeline. Besides, Dredging hoses' wear lining is super wearable and suitable of various of dredging objects. This allows for smooth bending of the hose. It can be equipped with fixed steel flanges, loose steel flanges or rubber flanges.
Dimension:
| I.D | W.P. | B.P. | Length | Reference Thickness | |
| mm | Tolerance(mm) | bar | bar | m | mm |
| 300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
| 800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
| 900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
| 1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
| 1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
| Customer made acceptable. | |||||
