Product Details:
|
BOOM Material: | Rubber AND Foam Filled | Skirt Material: | PVC |
---|---|---|---|
Boom Diameter: | 600`1500mm | Unit Length: | 20m/length |
Highlight: | floating spill boom,floating silt boom,floating weed boom |

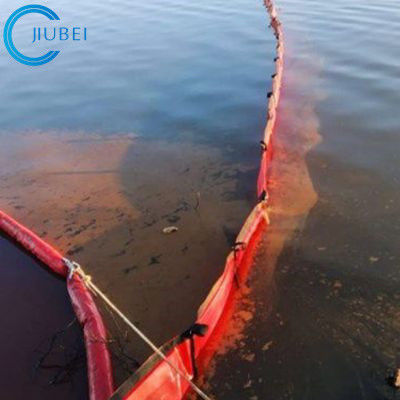

Heavy Duty PVC Silt Curtain For Sediment Control
The sediment curtain is a floating barrier used in ports, canal dredging, land reclamation from the sea, lakes and other water areas to control the large-scale diffusion of sediment and sediment in the water body. It is designed to prevent suspended matter from drifting into the water body during reclamation, port construction and other marine projects, so as to reduce the negative impact of the suspended matter on aquatic organisms and the aquatic environment on both as much as possible. At the same time, can also be used in urban water intake points to protect drinking water sources.
Technical Parameters:
Technical Date | |||||||
Model | WGJ600 | WGJ800 | WGJ900 | WGJ1000 | WGJ1100 | WGJ1500 | |
Freeboard(mm) | 210 | ||||||
Draught(mm) | 280 | ||||||
Section’s length(m) | 20 | ||||||
Working condition | Tention strength(kn) | 60 | 65 | 80 | 90 | 100 | 130 |
Wave height(m) | 0.6 | 0.75 | 1.0 | 1.5 | 1.5 | 2.0 | |
Wind speed(m/s) | 10 | 15 | 15 | 15 | 20 | 20 | |
Current speed(knot) | 1.2 | 1.5 | 2.0 | 3.0 | 3.0 | 3.0 |
Note: We pursue perfect products quality, if any change, subject to confirmation from both parties.
