Product Details:
|
| BOOM Material: | Rubber AND Foam Filled | Skirt Material: | PVC |
|---|---|---|---|
| Boom Diameter: | 600`1500mm | Unit Length: | 20m/length |
| Highlight: | silt curtain boom,floating boom barriers,floating booms oil spill |
||

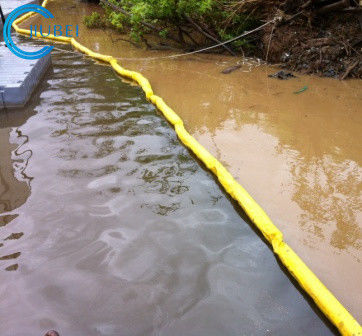

Eco friendly oil spilling silt curtain containment boom
Silt curtain is a floating barrier used in ports, channel dredging, reclamation of land from the sea, lakes and other water areas to control the large-scale diffusion of sediment and sediment in the water body. It is designed to prevent suspended sediment from floating back to the water body during reclamation, port construction and other maritime projects, so as to reduce the negative impact of suspended sediment on aquatic organisms and water environment as much as possible. At the same time, it can also be used in urban water intakes to protect drinking water sources.
The solid float rubber boom is the important equipment used for preventing spilled oil on waters from diffusion and transfer. It is widely used for long term deployment on waters such as open seas, bays, harbors, rivers, oil platform, oil-refining plants, oil storage, sea bathing area, etc. And also for emergent use in oil spilling accidents.
Technical Parameters:
| Technical Date | |||||||
| Model | WGJ600 | WGJ800 | WGJ900 | WGJ1000 | WGJ1100 | WGJ1500 | |
| Freeboard(mm) | 210 | ||||||
| Draught(mm) | 280 | ||||||
| Section’s length(m) | 20 | ||||||
| Working condition | Tention strength(kn) | 60 | 65 | 80 | 90 | 100 | 130 |
| Wave height(m) | 0.6 | 0.75 | 1.0 | 1.5 | 1.5 | 2.0 | |
| Wind speed(m/s) | 10 | 15 | 15 | 15 | 20 | 20 | |
| Current speed(knot) | 1.2 | 1.5 | 2.0 | 3.0 | 3.0 | 3.0 | |
Note: We pursue perfect products quality, if any change, subject to confirmation from both parties.
