Product Details:
|
| Name: | Self Floating Rubber Hose | Material: | NBR With High Density HDPE Foam |
|---|---|---|---|
| Connection: | Steel Flange | Length: | 11.8m/unit |
| Diameter: | DN300~1150mm | Application: | Dredging |
| Highlight: | Marine floating dredge hos,floating rubber hose,dredge hose suppliers |
||
Marine Floating Dredge and Sand Blasting and Mud Suction and Delivery and Discharge Hose
Features: It has wind and wave resistance, corrosion resistance and good self-floating performance, bears high working pressure, long service life, easy to assemble, etc
Features: one-time forming without weld, fully enclosed, corrosion resistant, aging resistant, and strong impact resistance; The internal filler is polyurethane foam, which is formed in one time and is not easy to break. It is especially suitable for construction in working waters with heavy wind and waves;
1.The outer cover is made from a rubber compound that is higly resistant against weathering, UV and Ozone.
2.Wear indicator layers can be implemented in the dredge hoses which transport abrasive medium.
3.A single foam floating layer prevents water absorption. The hose emergence above the water is not less than 20% of the total volume.
4.Custom flanges are available.Bending angle: in working conditions, the bending angle is from 0°to +45°.

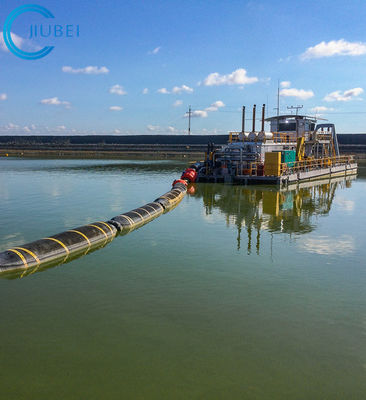

Purpose: It is mainly used for dredging and transportation pipelines in the sea and rivers.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
