Floating Marine Fuel Hose Dock Self Floating Marine Oil Delivery 24 Inch 20 Inch

Floating Marine Fuel Hose Dock Self Floating Marine Oil Delivery 24 Inch 20 Inch

MOQ: 1unit
Price: usd50-500/unit
Standard Packaging: Standard sea worthy packaging
Delivery Period: 7working days
Payment Method: L/C, T/T
Supply Capacity: 30units/month
Detail Information
Place of Origin
China
Brand Name
JiuBei
Certification
ISO
Name:
Self Floating Rubber Hose
Material:
NBR With High Density HDPE Foam
Connection:
Steel Flange
Length:
11.8m/unit
Diameter:
DN300~1150mm
Application:
Dredging
Highlight:

Floating Marine Fuel Hose 20 Inch

,

floating oil hose

,

floating dock hose

Product Description

Dock self floating marine oil delivery hose



Construction:
Lining: Excellent abrasion resistant NR/SBR synthetic rubber.
Reinforcement: High Tenacity Weave with Steel Spiral
Yarn, Self-Contained Foam
Cover: Synthetic CR Rubber

Application:
Dredge Float Pipe is used to divert seawater, silt, sand and debris from other dredging operations of harbors and docks. They are often used in dock and port construction.

Features:
1. The outer cover is made of a rubber compound that is highly resistant to the elements, UV rays and ozone.
2Wear indicator layers can be used on dredge tubing carrying abrasive fluids.
3. A single layer of floating foam prevents water absorption. The rise of the tube above the water is no less than 20% of its total volume.
4Custom flanges are available. Bending angle: When ready for operation, the bending angle is between 0° and +45°.

Temperature: -25℃ to +80℃ (-13℉ to +176℉)



Dimension:

Size (inch) I.D(mm) W.P.(bar) Length(m)
8 200 15~25 11.8
10 250 15~25 11.8
12 300 15~25 11.8
16 400 15~25 11.8
20 500 15~25 11.8
24 600 15~25 11.8
26 650 15~25 11.8
30 750 15~25 11.8
32 800 15~25 11.8
34 850 15~25 11.8
Other dimensions can be customized as requirements.

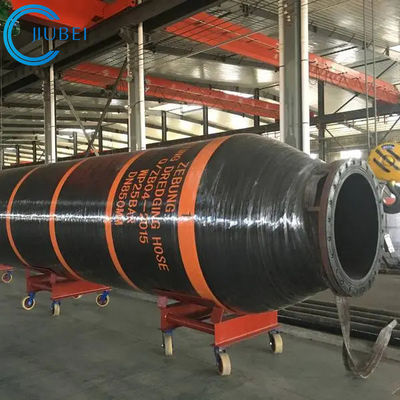

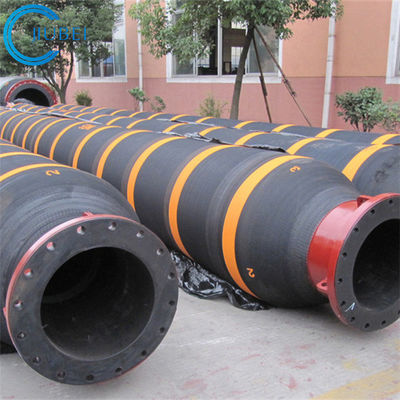

Detail images:



Floating Marine Fuel Hose Dock Self Floating Marine Oil Delivery 24	Inch 20 Inch 0Floating Marine Fuel Hose Dock Self Floating Marine Oil Delivery 24	Inch 20 Inch 1
