Product Details:
|
| Name: | Closed Cell Polyethylene Foam Filled Marine Cardinal Mark Buoy For Navigation | Material: | PE And Polyurethane |
|---|---|---|---|
| Color: | Black And Yellow | Dimension: | DN90~1200mm |
| Warranty: | 12months | MOQ: | 1 Set |
| Highlight: | foam marker buoy,foam filled mooring buoy,Polyethylene Buoy |
||

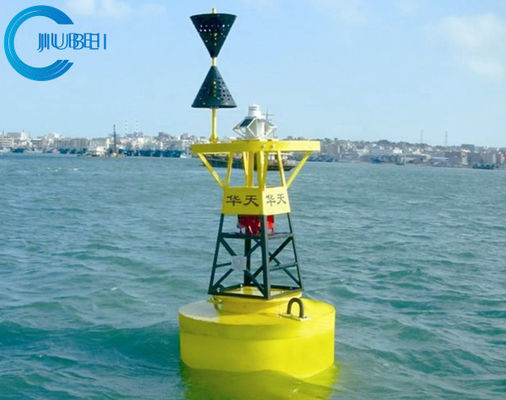

Closed cell polyethylene foam filled Marine cardinal mark buoy for navigation
UHMW-PE Navigation Buoy is kind of signal for vessel guiding, positioning, obstacles marking and warning marking. The buoy consists of light stand, floating body and tail pipe. The light stand is used for the signal light, which will provide light signal for vessels, the floating body will provide sufficient buoyancy for the buoy, and the tail pipe with ballast is to guarantee the stability of the buoy.
The raw material of the UHMWPE plastic buoy is Ultra High Molecular Weight Polyethylene, which is a polyethylene polymer with an average molecular weight greater than 1,500,000 . This molecular weight is well above the molecular weight of most typical polymers which are between 1,000,000 and 400,000 thus earning the title Ultra-High Molecular Weight Polyethylene. Because of the ultra high molecular weight
Dimension:
| Buoy Size | CMB1200 |
| Buoy Diameter(mm) | 1200 |
| Buoying Depth(m) | 3-15 |
| Free board(mm) | 510 |
| Focal Plane Height(mm) | 2040 |
| Net weight(kg) | 550 |
| Height(mm) | 3380 |
| Reserve Buoyancy(kg) | 570 |
| Item | Description |
| 1 |
Closed Cell Polyethylene Foam Core
|
| 2 |
Polyurethane Elastomer External Skin
|
| 3 |
Central Metalwork
|
| 4 |
Swivel Assembly, 16tonne S.W.L
|
