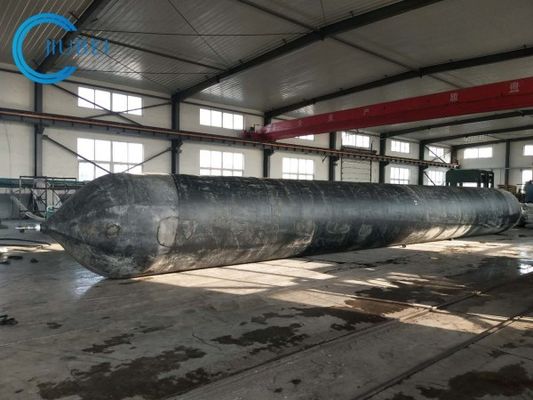

Perfect Solution Ship Launching Marine Airbags High Performance Long Lasting Protection

Product Description:

Marine Airbags have the best designed structure which consists of five different functional membranes in rubber layers.And they are made by patented whole enlacing technology which eliminates joints of cylindrical bodys with hemispherical heads.

Features:

1.Safety Air Inlet;2.Air Tightness Swivel;D=Diameter;Le=Effective Lenght (EL);L=Total Length

Outer and Inner Rubber Layer The outer rubber layer that covers the outside of marine airbag to protect under layers from abrasion and other external forces.This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.

The inner rubber layer seals pressurized air inside airbags.

Technical Parameters:

Durtarand InnerRubberMaterialParfomanca
Test Item Test Method Required Value
Outer Rubber Inner Rubber
1.Before Ageing
1.1 Tensile Strength ISO37:1994 18 Mpa or more 10 Mpa or more
1.2 Elongation ISO37:1994 400%or more 400%or more
1.3 Hardness ISO 7619:1997 60±10(Shore A) 50±10(Shore A)
2.Afterageing ISO 188:1998 Air oven ageing,70℃±1C96h Air oven ageing,70℃±1C96h
2.1 Tensile Strength 2.2 Elongation 2.3 Hardness		ISO37:1994 ISO37:1994 ISO 7619:1997	≥80%of the oiginal property ≥80%of the original property Not to exceed that original property by more than 8
3.Tear 4.Compression set 5.Static ozone ageing test *A:No cracks after elongation	ISO34-1:1994 400 N/cm or more iSO815:1991 30%(70℃±122h)or less ISO1431-1:1989 *A by 20%and exposure to 50 pphma at 40℃for 96h			No requirement No requirement No requirement

1.Standard size of marine airbags

Diameter(D):0.8~2.0m

Effective Length(EL):6~18m

Total Length(TL):7~19.5m

2 Standard number of layer

In order to confirm airbag's safety working pressure

we define the number of layers,which means the

number of synthetic-tire-cord layers.Normally we

offer marine airbags with 4,5,6,7,8 layers.Other

types are available upon request.

3.Material type of Synthetic-tire-cord

There are two kinds of synthetic-tire-cords with different performance.Refer to following table.
